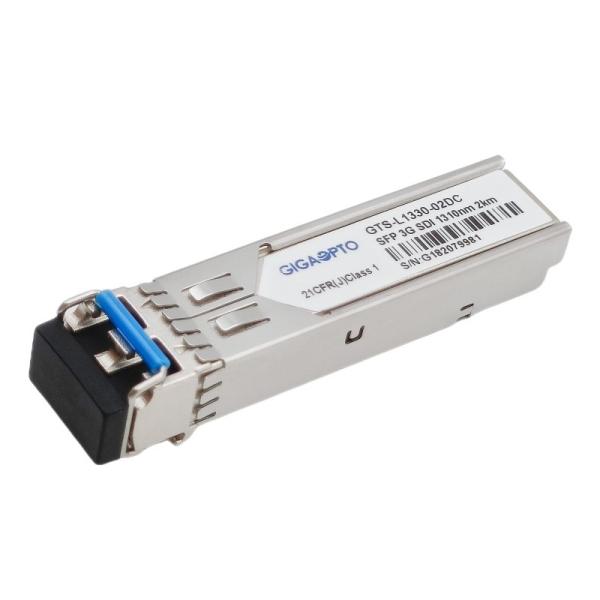

    3G SDI SMPTE SFP 1310nm 2km SMF Transceiver Modules Duplex LC DOM MSA Pinout with Video Pathological Patterns

    Ask Lasest Price
    Brand Name : Gigaopto
    Model Number : GTS-L1330-02DC
    Certification : CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 50,000pcs/month
    Delivery Time : 1-5 work days
    • Product Details
    • Company Profile

    3G SDI SMPTE SFP 1310nm 2km SMF Transceiver Modules Duplex LC DOM MSA Pinout with Video Pathological Patterns

    SMPTE 3G SDI SFP Transceiver 1310nm 2km Dual LC Optical Transmitter + Receiver Module MSA Pinout


    Functional Specification

    Product NameSMPTE 3G SFP TransceiverBandwidth50Mbit/s - 2.97Gbit/s
    Module TypeTransmitter + ReceiverMSA/Non-MSAMSA
    Form FactorSFPTemperature RangeCommercial/Industrial
    Center Wavelength1310nmMax Reach10km
    Fiber ConnectorDual LCFiber TypeSMF
    Transmitter TypeFPReceiver TypePIN
    Transmitter Power-8 ~ 0dBmRx Sensitivity (SD-SDI)< -16dBm
    Rx Sensitivity (HD-SDI)< -15dBm
    Rx Sensitivity (3G-SDI)< -14dBm
    Extinction ratio> 5dBReceiver Overload> -3dBm
    Power Consumption≤1WWarranty Time3 years
    DOM/DDMSupport as defaultOEM/ODMYes
    Video Pathological Patterns SupportSMPTE259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rates
    ComplianceSFP MSA , SFF-8472,SMPTE 297M-2006



    Description

    Gigaopto’s GTS-L1330-10DC SMPTE 3G SDI Video Transceiver Module is designed to transmit/receive data rates from 50Mbps to 2.97Gbps over single-mode fiber max transmission link up to 2km, and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rates. The module is fully compliant with SMPTE 297M-2006.
    The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
    This 3G SDI SFP is compatible with SFP Multi-Source Agreement (MSA). Real time digital diagnostic monitoring functions are available via an I2C, as defaulted by SFF-8472.



    Features

    • SMPTE 297-2006 Compatible
    • Hot-Pluggable SFP
    • Bandwidth from 50 Mb/s to 2.97 Gb/s
    • Optical Link up to 2km for 3G-SDI
    • Support Video Pathological Patterns for SD-SDI, HD-SDI and 3G-SDI
    • 1310nm FP laser and PIN photo-detector
    • Hot-pluggable SFP footprint
    • SFP MSA compliant
    • Digital Diagnostic functions available through the I2C interface
    • Single 3.3V Power Supply
    • Low Power Consumption
    • Operating case temperature range: 0 to +70°C
    • RoHS compliant and Lead-Free


    Application

    • SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces. HDTV/SDTV Service Interfaces.


    PIN Definition

    3G SDI SFP Transceiver, 1310nm FP+PIN, 2km Dual LC, MSA Pinout, SD/HD/3G SDI
