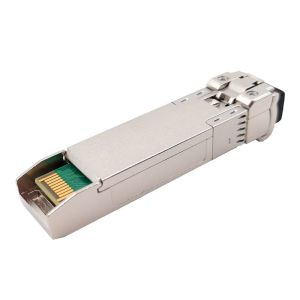

    12G UHD SDI Video SFP Transceiver BiDi 13T 12R SMPTE Optical Transceiver

    Ask Lasest Price
    Brand Name : Gigaopto
    Model Number : GTS-B329A-10DC
    Certification : CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
    Price : negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 50,000pcs/month
    Delivery Time : 1-5 work days
    • Product Details
    • Company Profile

    12G UHD SDI Video SFP Transceiver BiDi 13T 12R SMPTE Optical Transceiver

    10KM BiDi 1330nm/1270nm 12G-SDI SFP+ Optical Transceiver MSA Pinout


    Functional Specification


    Product Name12G UHD Video SFPData Rate0.27~11.88Gbps
    Module TypeTransceiverMSA/Non-MSAMSA
    PackingSFP+Commercial Temperature0 to 70°C (32 to 158°F)
    Wavelength1330nm -TX/1270nm -RXMax Distance10km
    InterfaceSimplex LCMediasingle-mode fiber
    TransmitterDFBReceiverPIN
    Power Supply Voltage+3.3VCurrent280mA (Typical.)
    Average Output Power-5~+1dBmRX Sensitivity@11.88Gbps< -11dB
    RX Sensitivity @ 5.94Gbps< -13dBRX Sensitivity@ 2.97Gbps< -13dB
    Extinction Ratio>3.5dBRX Saturation> 1.0 dBm
    Power Consumption≤1.0WDigital DiagnosticSupport
    OEM/ODMYesWarranty3-year
    ProtocolsSMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), ST424 (3G SDI), ST292-1(HD-SDI), and ST 259 (SD-SDI).

    Description


    Gigaopto’s GTS-B329A-10DC 12G BiDi SFP+ Optical transceiver is designed for 12G-SDI bidirectional transmission links reach up to 10km over SMF with wavelength 1330nm TX/1270nm RX.

    It supports up to 11.8Gbps and is specifically designed to transmit the pathological patterns for HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI.

    The transceiver includes three sections: a DFB laser, a PIN photodiode integrated with a trans-impedance pre-amplifier (TIA) , Reclocker ,and a MCU controller. The transceiver is compliant with SFP Multi-Source Agreement (MSA), It is with the SFP+ 20-pin connector to allow hot plug capability.

    The module provides digital diagnostic information of its operating conditions and status, including transmitting power, laser bias current, module temperature, and supply voltage. Calibration and alarm/warning threshold data are written and stored in the internal memory (EEPROM).


    Features


    • SD/HD/3G/6G/12G-SDI SFP Transceiver
    • ST 259, ST 292-1,ST 424, ST-2081 and ST-2082 compatible
    • Metal enclosure for Lower EMI
    • 1270nm DFB Laser transmitter,1330nm receiver
    • Supports SDI pathological patterns for SD-SDI, HD-SDI, 3G-SDI,6G-SDI and 12G SDI
    • Compliant with SFP+ MSA
    • Simplex LC connector
    • The module's receiver contains reclocker
    • single 3.3V power supply
    • Hot-pluggable SFP footprint
    • Operating case temperature range:0 to +70℃
    • RoHS compliant(lead free)

    Application


    • SMPTE 2082 Compliant Electrical-to-Optical Interfaces
    • High-density Video Routers

    PIN Definition
