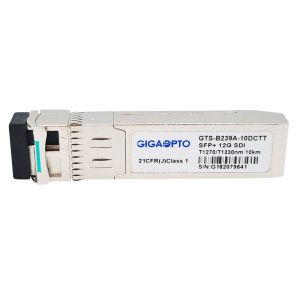

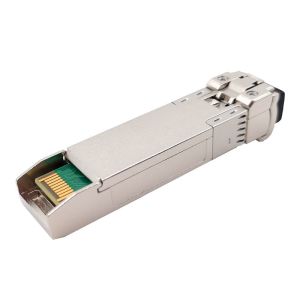

    12G SDI SFP+ BiDi Video SFP Transceiver 1270nm TX1 1330nm TX2 Dual Optical Transmitters Module

    Ask Lasest Price
    Brand Name : Gigaopto
    Model Number : GTS-B239A-10DCTT
    Certification : CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
    Price : negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 50,000pcs/Month
    Delivery Time : 1-5 work days
    • Product Details
    • Company Profile

    12G SDI SFP+ BiDi Video SFP Transceiver 1270nm TX1 1330nm TX2 Dual Optical Transmitters Module

    Non MSA 12G SMPTE Video SFP BiDi Dual Transmitters Module LC 10Km DOM 2TX in BOSA 1-fiber solution


    Functional Specification


    Product Name12G SFP+ BiDi 2TxData Rate (Gbps)up to 11.88Gbps
    Module TypeBiDi Dual TransmitterMSA/Non-MSANon-MSA
    Form FactorSFP+ 1 fiberTemperature0 to 70°C (32 to 158°F)
    Wavelength1270nm-Tx1 / 1330nm-Tx2Cable Transmission10km
    Fiber ConnectorSimplex LCFibre TypeSingle-mode fiber
    Transmitter TypeDFB BiDiReceiver TypeN/A
    Supply Voltage3.3VSupply Current320mA
    Average Output Power-5~1dBmExtinction-Ratio>3.5dB
    DOMYesWarranty36 months
    OEM/ODMYesWeight25gram
    ProtocolsSMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), ST424 (3GSDI), ST292-1(HD-SDI), and ST 259 (SD-SDI).

    Products Description of 12G-SDI SFP+ BiDi Dual Transmitters Modules


    Gigaopto's 12G-SDI SFP+ BiDi 2Tx dual-transmitter optical module is designed for 12G-SDI video broadcast network links reach up to 10km over Single-Mode Fiber (SMF), transmitting two lanes of 12G-SDI video signals.

    The transmitter module is compliant with SMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), ST424 (3G SDI), ST 292-1 (HD-SDI), and ST259 (SD-SDI).

    It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. It uses two 1310 nm multiple quantum well DFB lasers and is a class 1 laser compliant according to International Safety Standard IEC-60825. A maximum distance of 10 km is achievable with 12Gbps pathological signals.


    Features


    • SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M, and DVB-ASI Compatible
    • Data rate up to 12Gb/s
    • Transmission up to 10 km for 12G-SDI
    • Re-clocker built-in
    • Support Video Pathological Patterns for HD-SDI,3G-SDI, 6G-SDI, and 12G-SDI
    • Dual Transmitter with Duplex LC
    • Based on Industry Standard SFP +
    • SFF-8472 Digital Diagnostic Function
    • Two Independent TTL Laser Disable Input
    • Single +3.3 V Power Supply
    • RoHS Compliant
    • Commercial Temperature Operation: 0 to +70°C
    • Hot-Pluggable
    • Class 1 Laser International Safety Standard IEC-60825 Compliant

    Applications


    • Serial Digital Fiber Transmission System for SMPTE ST 259,SMPTE ST 344, SMPTEST292-1/2, SMPTEST 424, SMPTE ST 2081-1 and SMPTE ST 2082-1 Signals
    • UHDTV/HDTV/SDTV Service Interfaces

    PIN Definition
